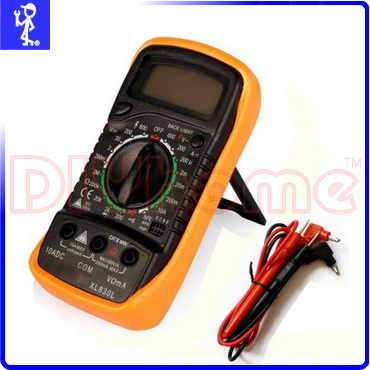

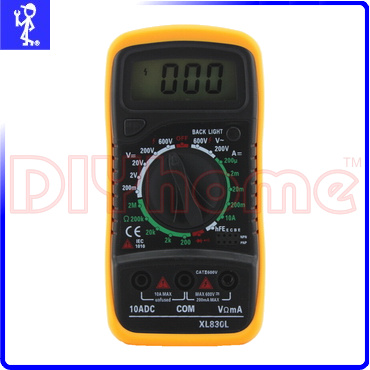

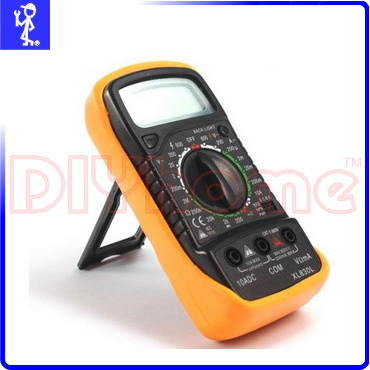

多功能數位電錶 XL830L 附防震套
zoom next
多功能數位電錶 XL830L 附防震套

商品描述:

商品屬性

Features:
1. DC Voltage: 200mV-600V ±(0.5%±2dgts)
2. AC Voltage: 200/600V ±(1.2%±10dgts)
3. DC Current: 200uA-10A ±(1.0%+2dgts)
4. Resistance: 200Ω-2MΩ ±(0.8%±2dgts)
5. Power Supply: 9V,6F22
6. Max. Display: 1999
7. Low Battery Indication: - /+ display
8. Dimensions:15 x 10.5 x5.2cm
9. CMOS integrated circuit and dual slope A/D conversion, auto zero and select polarit
10. 70 x 40mm big lcd screen, word size up to 25mm, easy to read.
11. The best display visual angle is approx 70°
12. It will auto turn off after starting up 25 minutes
13. High reliable measure range and 32 gears are more effective to avoid false operation
14. You can use the Multimeter in more places, such as factory, school lab, home hobby, machine repairing, etc

Notes:
1. Pls do not change the inner circuit to aviod damaging the ammeter
2. Do not connect it to the voltage over 1000VDC or 750VAC
3. Make sure not connect the error measure range
4. Pls do not use the ammeter if the back cover is wrong
5. Pls remove the pen and cut off the power before replacing battery and fuze

Specifications:
Test Type Multimeter, Electric Resistance, Current, Voltage
Testing Range Voltage:200mV - 600V;Current: 200uA - 10A;Resistance:200 ¦¸ - 2M ¦¸
Resolution Voltage:0.1mV;Current:1uA;Resistance:1¦¸
Voltage (V) 9
Battery Type 9V
Total Batteries 1
Dimensions (cm) 14.5 x 10.0 x 5.0
Weight (kg) 0.267
